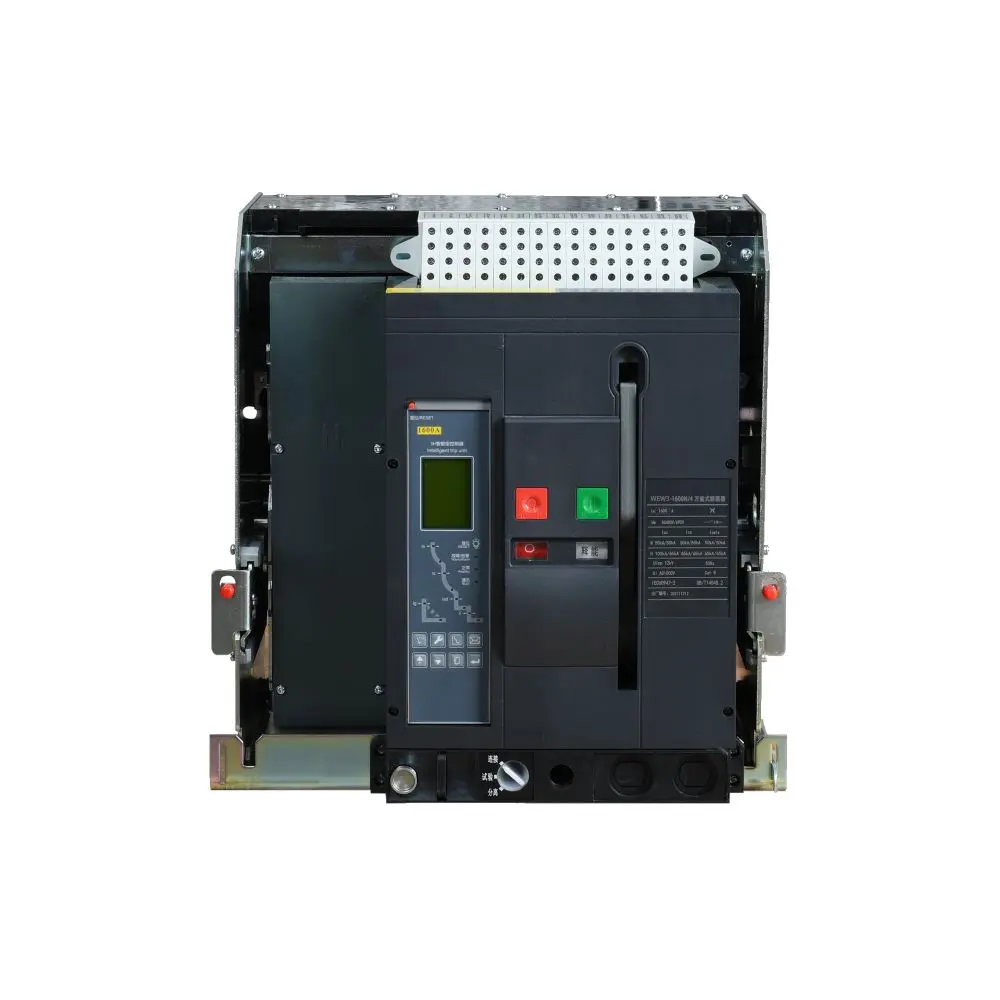

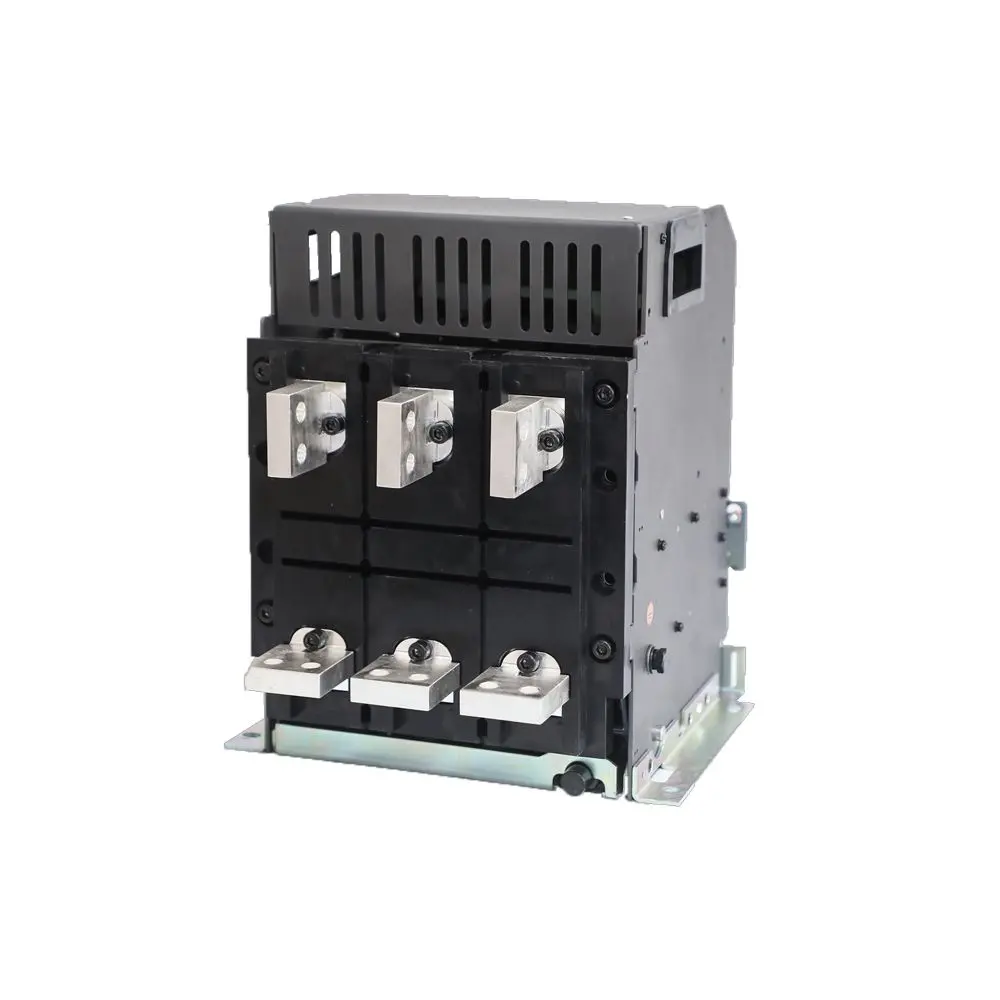

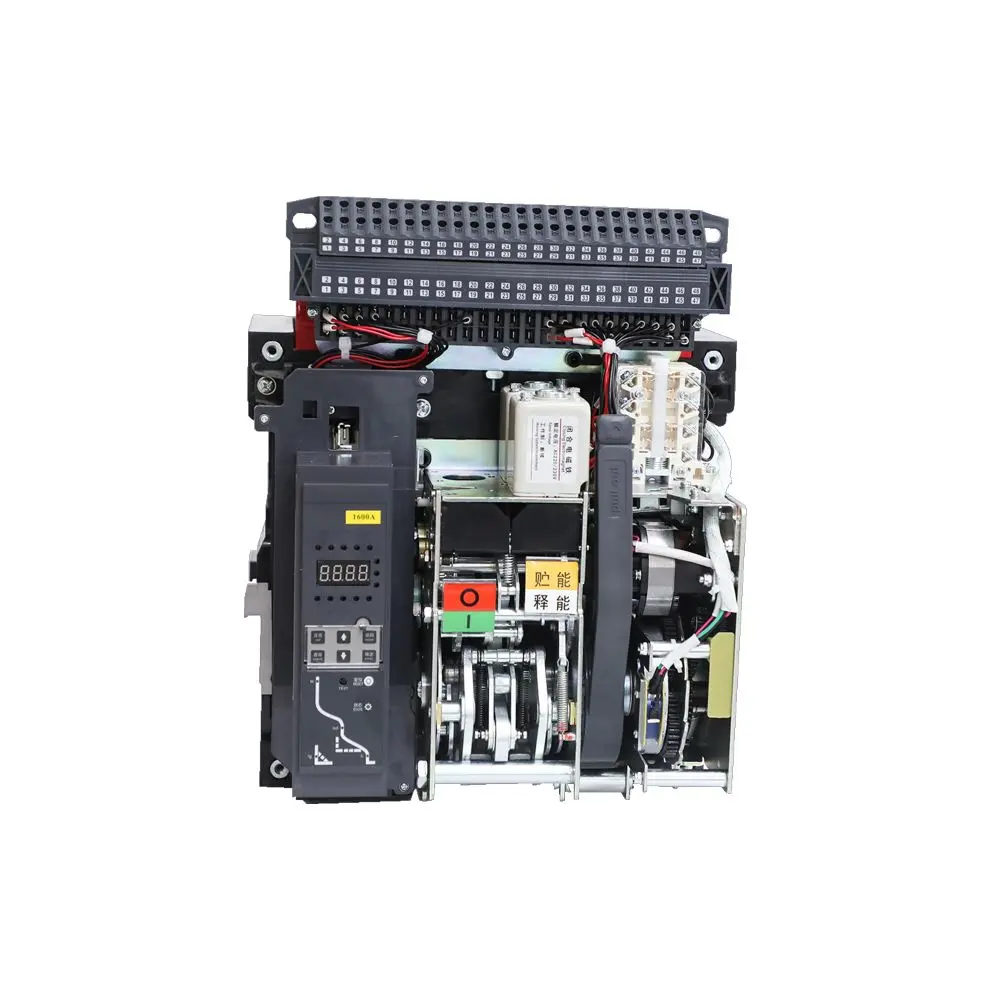

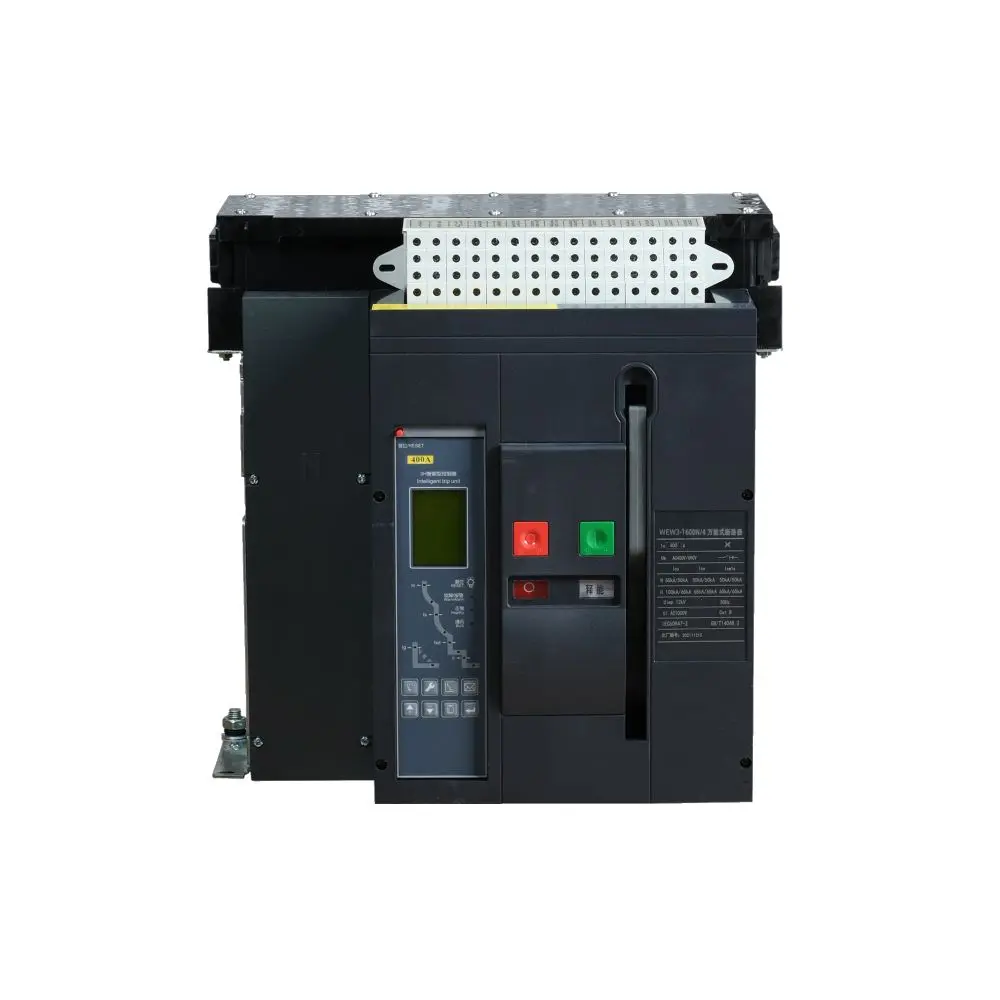

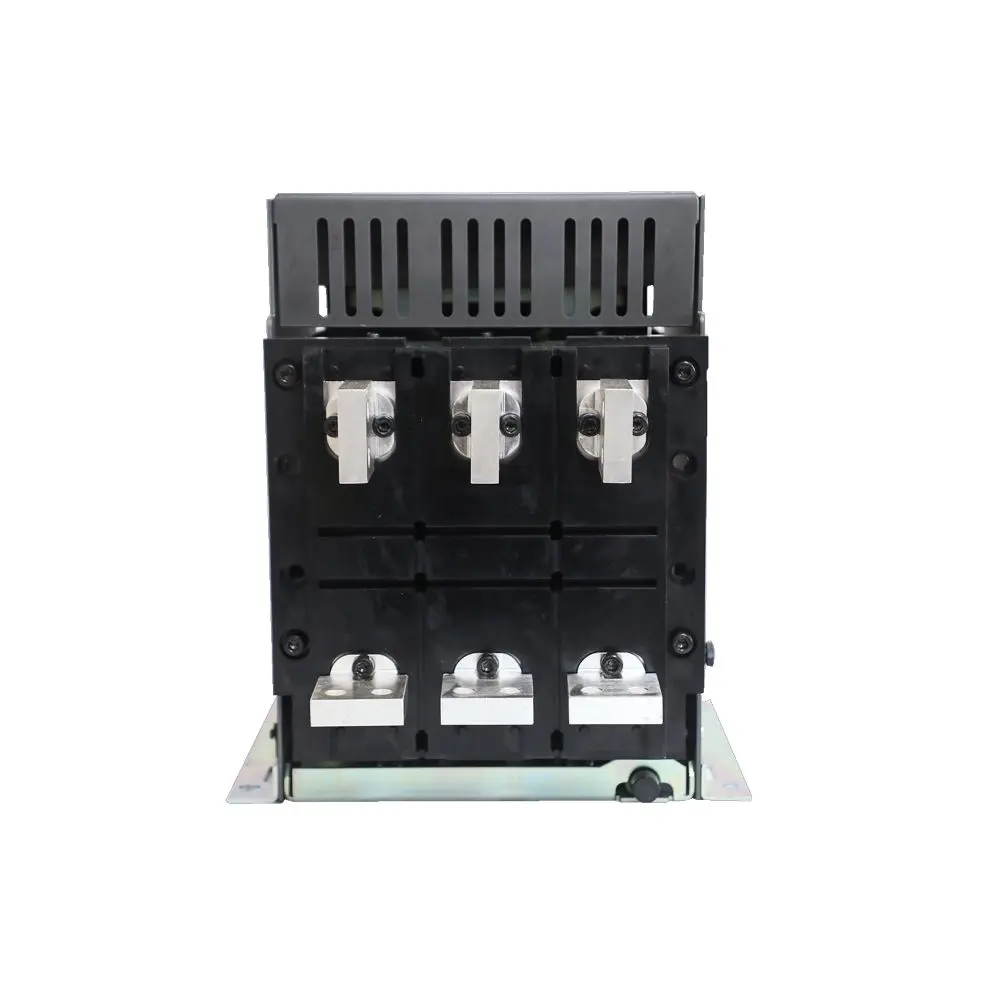

Air circuit breaker WEW3-1600 ACB breaker withdrawable type acb fixed type type 1000VAC/1500VAC 2500A 3p acb 4p acb

Solar 800VAC ACB

Air circuit breaker WEW3-1600 ACB breaker withdrawable type acb fixed type type 1000VAC/1500VAC 2500A 3p acb 4p acb
Air circuit breaker WEW3-1600 ACB breaker withdrawable type acb fixed type type 1000VAC/1500VAC 2500A 3p acb 4p acb
Air circuit breaker WEW3-1600 ACB breaker withdrawable type acb fixed type type 1000VAC/1500VAC 2500A 3p acb 4p acb
Air circuit breaker WEW3-1600 ACB breaker withdrawable type acb fixed type type 1000VAC/1500VAC 2500A 3p acb 4p acb
Air circuit breaker WEW3-1600 ACB breaker withdrawable type acb fixed type type 1000VAC/1500VAC 2500A 3p acb 4p acb
Air circuit breaker WEW3-1600 ACB breaker withdrawable type acb fixed type type 1000VAC/1500VAC 2500A 3p acb 4p acb
Air circuit breaker WEW3-1600 ACB breaker withdrawable type acb fixed type type 1000VAC/1500VAC 2500A 3p acb 4p acb

Air circuit breaker WEW3-1600 ACB breaker withdrawable type acb fixed type type 1000VAC/1500VAC 2500A 3p acb 4p acb

Rated Current : 1600A

Number Of Poles : 3P/4P

Rated Working Voltage : 400V/690V

    Contact us
    Product Details

    the function and advantage of solar air circuit breaker

    800V ACB, 800-1140V ACB and solar air circuit breakers are commonly used in solar power generation systems to protect and control electrical equipment in solar power generation systems.
    These air circuit breakers typically have the following features:
    High voltage level: suitable for high-voltage electrical systems from 800V to 1140V to ensure safe and reliable operation of the system.

    Main performance index of WEW1 series circuit breaker

    WEW3 Air Circuit Breaker
    		 1600
    Rated operating current In (A),40℃
    		 200-400-630-800-1000-1250-1600
    Rated insulation voltage Ui (V) 1000
    Rated impulse withstand voltage (kV) 12
    Rated operational voltage Ue(V),AC 50/60Hz 400V/690V
    Use category B
    Rated operational voltage Ue(V),AC 50/60Hz 100%In
    Breaking capacity code M H
    Number of poles
    		 3P ■ ■
    4P ■ ■
    Rated ultimate
    short-circuit breaking
    capacity Icu (kA)
    		 AC380V/400V/415V 55 65
    AC690V 25 50
    AC800V/1140V - -
    Rated service breaking
    capacity Ics (kA)
    		 AC380V/400V/415V 42 55
    AC690V 20 42
    AC800V/1140V - -
    Rated short-time withstand
    current Icw (kA/1s)
    		 AC380V/400V/415V 42 55
    AC690V 20 42
    AC800V/1140V - -
    Mechanical life
    (CO recycle)
    		 Maintenance 20000
    Electrical life
    (CO recycle)
    		 AC415V,In 2000
    AC690V,In 1000
    Standard configuration Fixed Drawetry-pe
    The body of the circuit breaker ■ ■
    Drawer base ■ ■
    Intelligent controller ■ ■
    Upper and lower horizontal connecting wires ■ ■
    Indicating contact of opening/closing ■ ■
    Indicating contact of fault tripping ■ ■
    Auxiliary contact 4NO+4NC ■ ■
    Electric motor operating mechanism ■ ■
    Shunt releas ■ ■
    Optional accessories

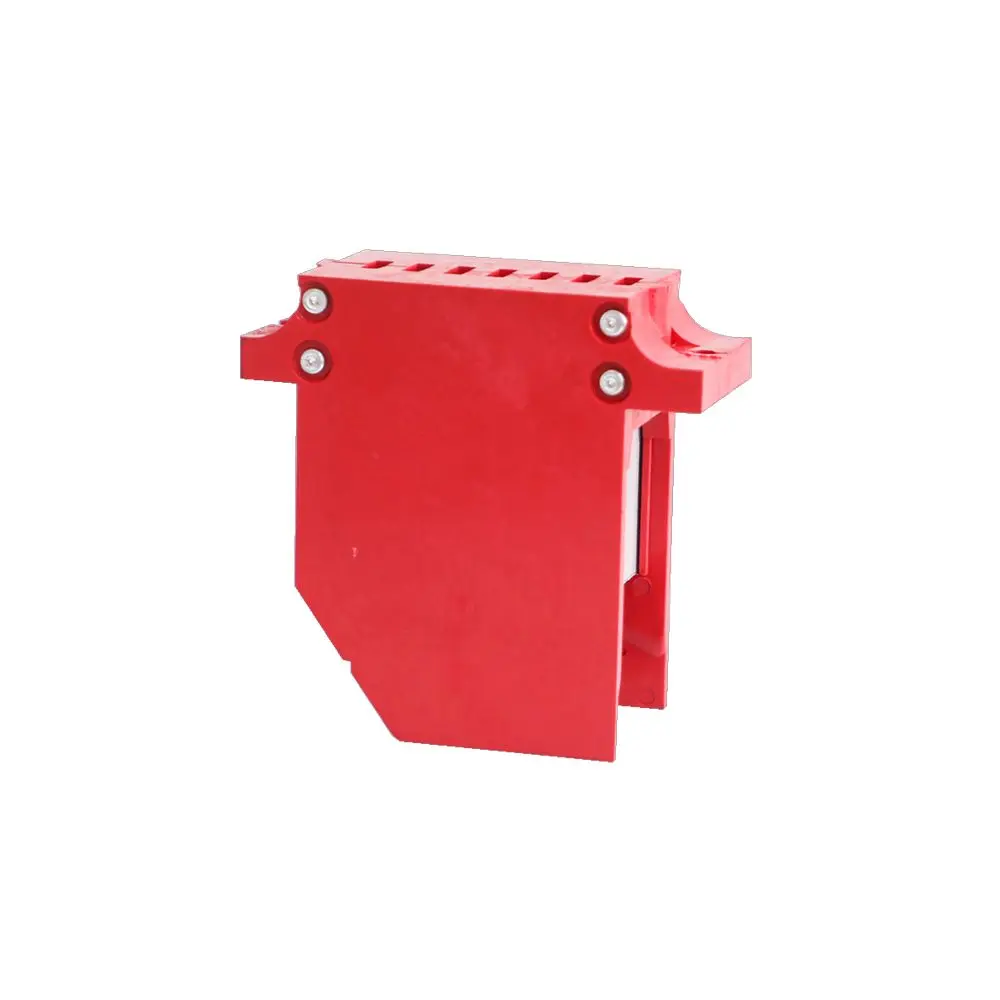

    Phase partition □ □
    Instantaneous undervoltage release □ □
    Time-delay undervoltage release □ □
    Opening and closing button lock □ □
    Lock for the drawer base □ □
    Lock for the separation position of the drawer seat □ □
    Key lock □ □
    Door interlock □ □
    Auxiliary contact 6NO+6NC □ □
    Electric indications of three positions on the drawer base □ □
    Steel cable interlock □ □
    Locking interlock □ □
    Dual power controller □ □
    External neutral line transformer □ □
    Zero-sequence transformer □ □
    Ground current transformer and its accessories □ □
    Dimension
    Dimension (mm)
    W×H×D
    		 Width (3P/4P) 36.5/46 46.5/46
    Height 43/55 51/55
    Depth 32.5/42 37/42
    Weight
    Weight(kg)/Fixed
    		 3P
    4P
    Weight(kg)/Drawer 3P
    4P
